| Product Code: | DCM-24-800 | Specification: | 24V 800W |
| Material: | Steel | Color: | Black |
| Length: | 169mm | Height: | 103mm |
| Depth: | 80mm | Weight: | 2.56kg |
| Bore Diameter: | Hole Spacing: | ||
| Working Tension: | Breaking Tension: | ||
| Unit: | PC | Packing: | Carton |

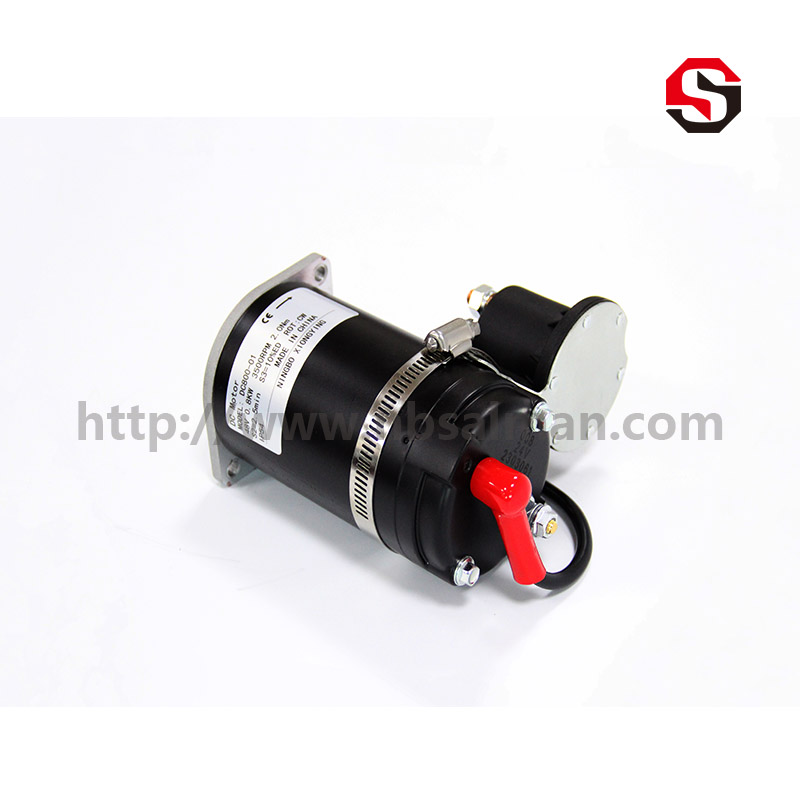

| Description: | 800W DC Motor | ||
| Contact Now | |||
Specification：
型号 Models | 额定电压 Rated Voltage | 额定电流 Rated Current | 额定功率 Rated Power | 额定转矩 Rated Torque | 绝缘等级 Insulation Grade | 转向 Rotation | 重量 Weight （Kg） |
DC12V1600W | 12V | 220A | 1600W | 6.0N.m | F | CW | 7.2 |
DC24V2200W | 24V | 130A | 2200W | 6.0N.m | F | CW | 7.2 |
DC24V800W | 24V | 45A | 800W | 2.0N.m | F | CW | 2.4 |
DC48V800W | 48V | 23A | 800W | 2.0N.m | F | CW | 2.6 |
DC60V800W | 60V | 12A | 800W | 2.0N.m | F | CW | 2.6 |
DC24V500W | 24V | 40A | 500W | 1.5N.m | F | CW | 2.1 |
DC48V500W | 48V | 20A | 500W | 1.5N.m | F | CW | 2.2 |
DC60V500W | 60V | 12A | 500W | 1.5N.m | F | CW | 2.2 |
DC48V400W | 48V | 8A | 500W | 1.2N.m | F | CW | 2.2 |
