| Product Code: | XC20D | Specification: | |
| Material: | Color: | ||
| Length: | Height: | ||
| Depth: | Weight: | ||
| Bore Diameter: | Hole Spacing: | ||
| Working Tension: | Breaking Tension: | ||
| Unit: | Packing: | ||
| Description: | |||
| Contact Now | |||

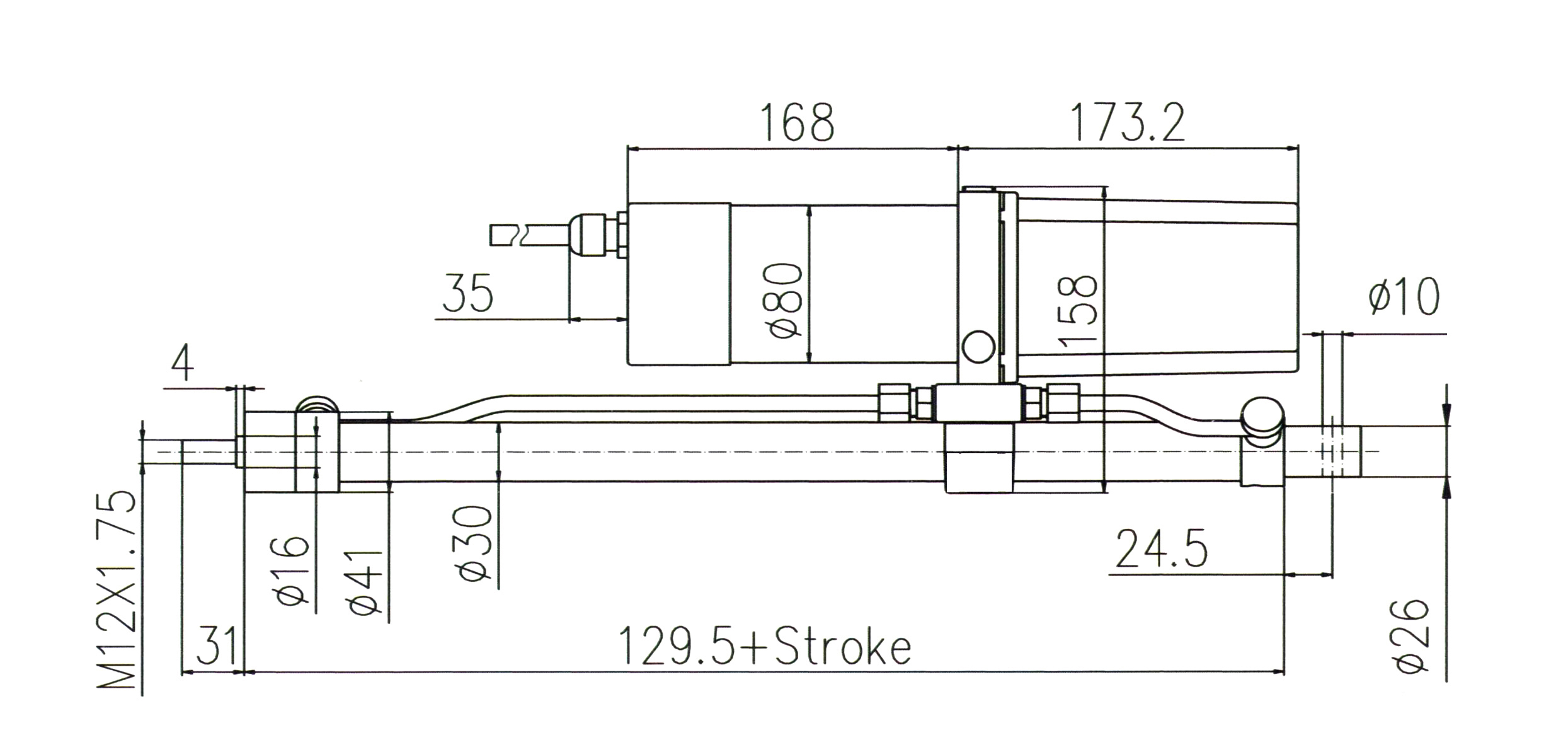

型号/Model：XC20D
规格参数/Specification：
1. 电压/Voltage：DC 24V/48V
2. 功率/Power：800W
3. 行程/Stroke：50-1000mm
4. 顶升力/Push Load Capacity：500KG
5. 缩回力/Pull Load Capacity：180KG
6. 速度/Speed：64-65mm/s, 100-102mm/s, 140-145mm/s
7. 工作温度/Operating Temperature：-30~70℃
8. 连续运行时间/Continuous Operating Time：6min
9. 工作方式/Acting Way：双作用/Double Acting
10. 防护等级/Protection Grade：IPX6
