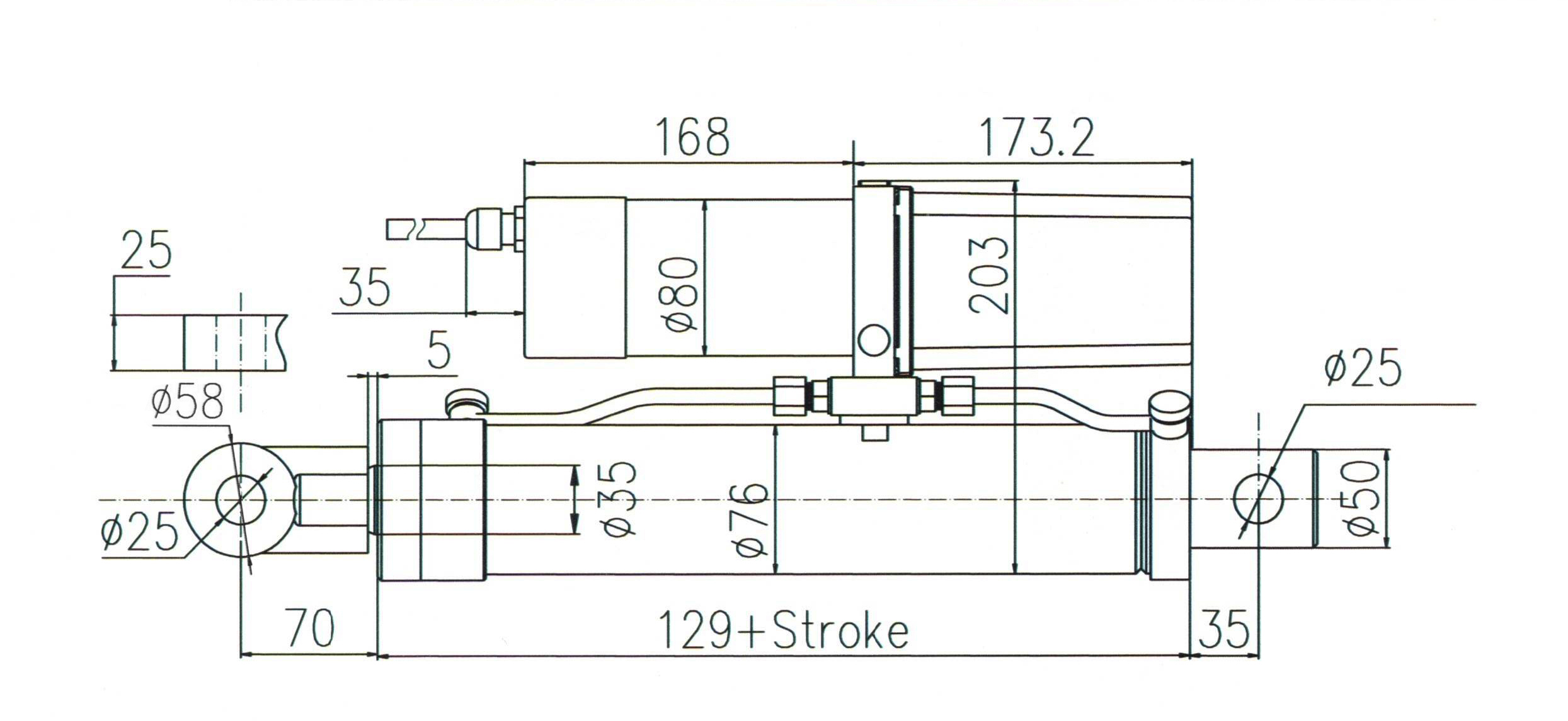

型号/Model：XC63D
规格参数/Specification：
1. 电压/Voltage：DC 24V/48V
2. 功率/Power：800W
3. 行程/Stroke：100-500mm
4. 顶升力/Push Load Capacity：5000KG
5. 缩回力/Pull Load Capacity：3500KG
6. 速度/Speed：6-7mm/s, 10-11mm/s, 14-15mm/s
7. 工作温度/Operating Temperature：-30~70℃
8. 连续运行时间/Continuous Operating Time：6min
9. 工作方式/Acting Way：双作用/Double Acting
10. 防护等级/Protection Grade：IPX6
