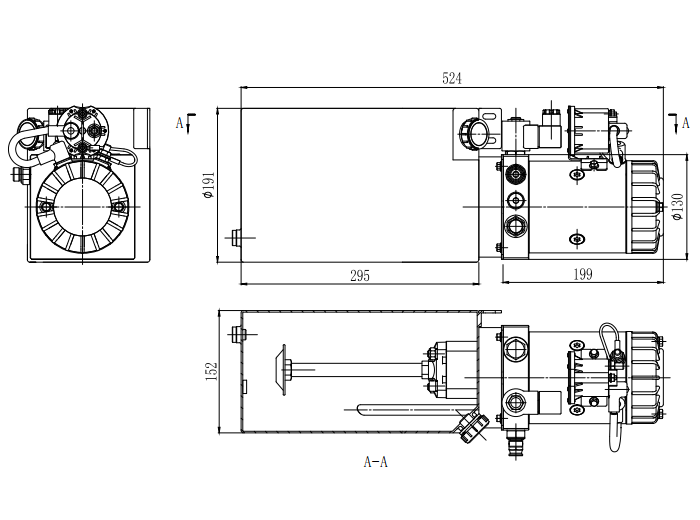

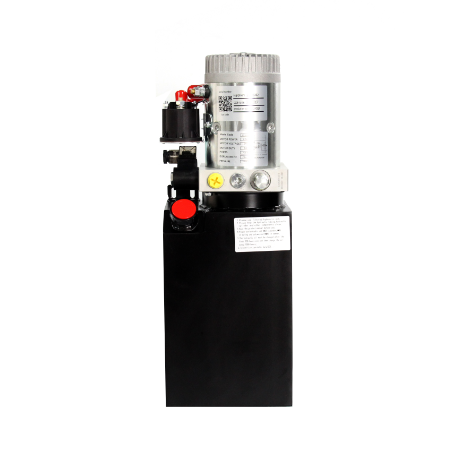

型号/Model：XC14F18M09
规格参数/Specification：
1. 电机/Motor：DC 24V, 130A, 2.2KW, 6Nm, 2800RPM
2. 排量/Displacement：2.7cc/r
3. 油路块/Valve Block：130x130x32/49.5mm
4. 内置节流阀/Throttle Valve Inside：8L (∅2.5)
5. 油箱容积/Tank Capacity：8.5L
6. 安装方式/Mounting：立式/Vertical
7. 电磁阀/Solenoid：DC 24V 二位三通/2-position 3-way
8. 压力/System Pressure：18MPa
9. 出油口/Oil Port：G3/8
10. 工作制/Working System：S3
