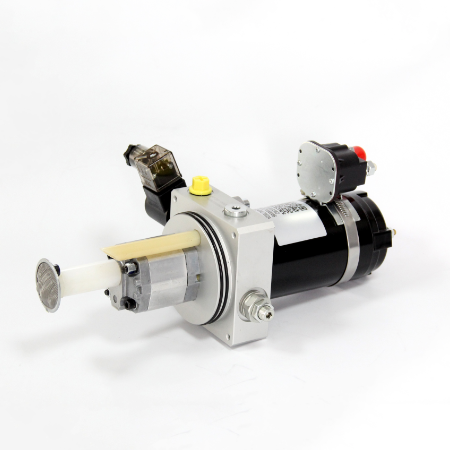

型号/Model：XC02F28M04
规格参数/Specification：
1. 电机/Motor：DC 24V, 45A, 0.8KW, 2Nm, 3100RPM
2. 排量/Displacement：0.75cc/r

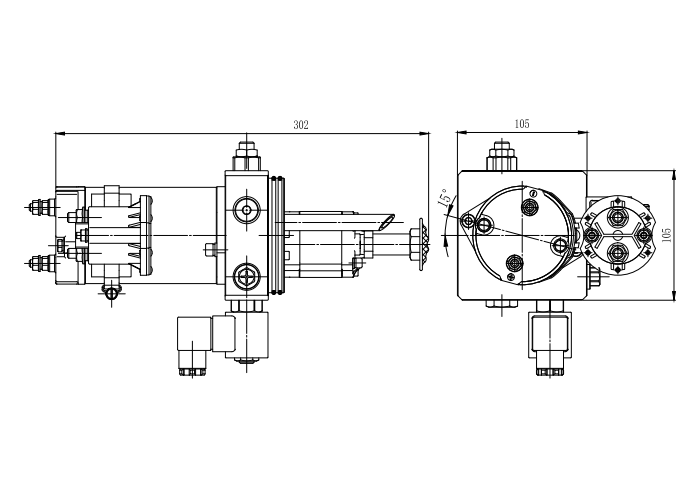

3. 油路块/Valve Block：105x105x35/48mm
4. 节流阀/Throttle Valve：G1/4-4L (∅1.6)
5. 油箱容积/Tank Capacity：
6. 安装方式/Mounting：立式/Vertical
7. 电磁阀/Solenoid：DC 24V 二位三通/2-position 3-way
8. 压力/System Pressure：14MPa
9. 出油口/Oil Port：G1/4
10. 工作制/Working System：S3
