| Product Code: | XC06F32M16S | Specification: | |
| Material: | Color: | ||
| Length: | Height: | ||
| Depth: | Weight: | ||
| Bore Diameter: | Hole Spacing: | ||
| Working Tension: | Breaking Tension: | ||
| Unit: | Packing: | ||
| Description: | |||
| Contact Now | |||

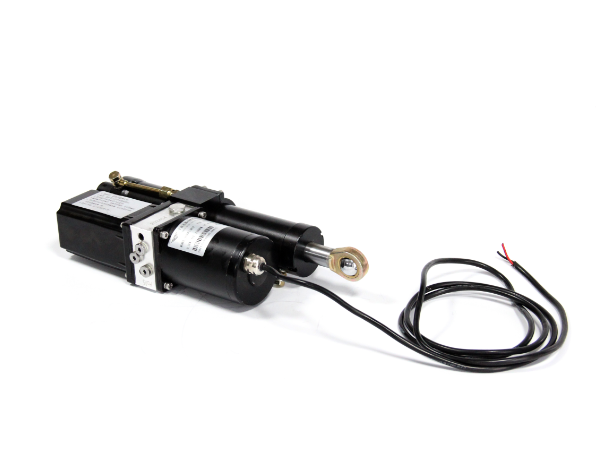

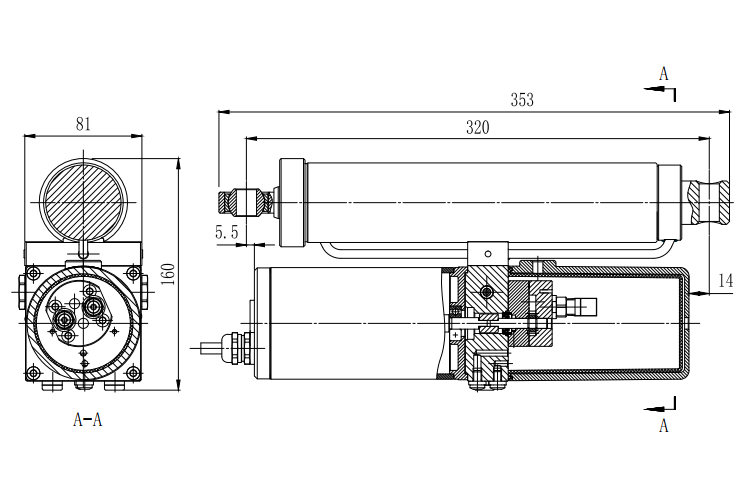

型号/Model：XC06F32M16S
规格参数/Specification：
1. 电机/Motor：DC 48V, 6A, 0.4KW, 0.5Nm, 3100RPM
2. 排量/Displacement：0.16cc/r
3. 油路块/Valve Block：80x80x28/29.5mm
4. 液压缸/Hydraulic Cylinder：D45-L200
5. 油箱容积/Tank Capacity：0.35L
6. 压力/ Pressure：2.2T-1.8T
7. 工作方式/Working Mode：双向/Two-Way
8. 工作制/Working System：S3
